AtomX SSDmini 1 TB by Angelbird

399,99 € 399,99 €
Su PVM

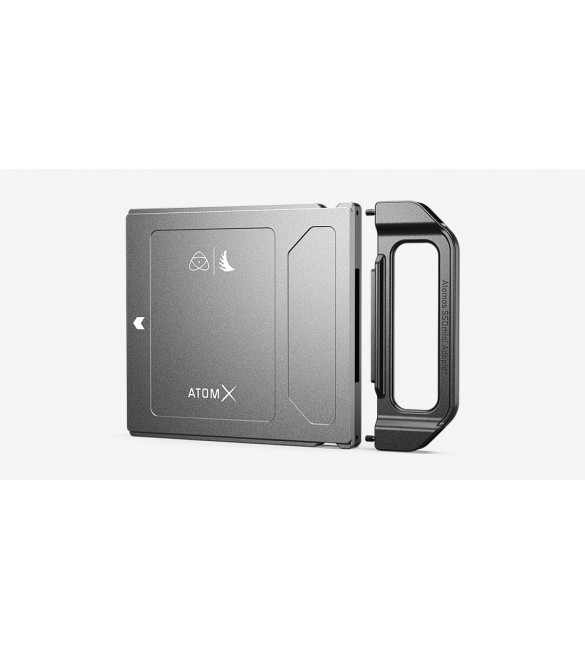

The perfectly matched storage solution for your Atomos recorder

Angelbird’s AtomX SSDmini was custom made for the new Atomos Ninja V monitor recorder and is perfectly compatible with all the other available recorders. The AtomX SSDmini is 20 percent smaller than the average SSD (to fit the small footprint of the Ninja V), offers 500 GB, 1 TB and 2 TB of storage, has sustained read speeds of 540 MB/s and write speeds of 500 MB/s, captures CDNG up to 4K 30p, ProRes RAW HQ 5.7K up to 30p, plus 4K 60p and 2K 240p, sports a SATA III connector, and supports Stable Stream™ technology to never miss a frame. Boom!

Kiekis

SPECIFICATIONS

General

CAPACITY500 GB | 1 TB | 2 TB
FORM FACTORSSDmini
Compatible with *
DIMENSIONS80.0 x 75.5 x 9.3 mm (3.15 × 2.97 x 0.37 in)
WEIGHT~ 90.0 g | ~ 3.2 oz

Performance

SEQUENTIAL READ SPEED1560 MB/s
SUSTAINED READ SPEED1540 MB/s
SEQUENTIAL WRITE SPEED1520 MB/s
SUSTAINED WRITE SPEED1500 MB/s
ACCESS TIME (R/W)~ 65 µs | 40 µs

Reliability

MTBF2,400,000 hours
DATA RELIABILITYBuilt-in EDC | ECC function
DATA RETENTION10 years at 25°
ENDURANCE
500 GB: up to 1,500 TBW
1 TB: up to 3,000 TBW
2 TB: up to 6,000 TBW
CERTIFICATIONSRoHS, CE and FCC compliant, REACH

Electrical

DC INPUT VOLTAGE5 V ± 10 %
POWER USAGE (IDLE/MAX)
500 GB: 0.35 W / 3.0 W
1 TB: 0.35 W / 3.5 W
2 TB: 0.35 W / 3.5 W

Technical

INTERFACESATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported,
SATA 3.0 compliant
OVER PROVISIONING~ 9 %
FEATURESTemperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ

Environmental

SHOCK RESITANCE (OPERATING)1000 G/0.5 ms
VIBRATION RESISTANCE (OPERATING)2.17 GRMS
OPERATING TEMPERATURE-20 °C | 70 °C
STORAGE TEMPERATURE–40 °C | 85 °C
OPERATING HUMIDITY5 % to 95 % non-condensing

Compatibility list

Ninja V | Ninja V+ | Ninja Flame | Ninja Inferno | Neon | Sumo 19* | Shogun Studio 1/2* | Shogun 7 | Shogun Flame | Shogun Inferno

*Sumo 19 & Shogun Studio 1/2 require to use the Atomos SSDmini Adapter Handle.

Supported codecs

Apple ProRes / Avid DNx: up to 4k60p, 2k240p
Apple ProRes RAW: up to 8k30p, 6k30p, 5.7k30p, 4k120p, 2k240p
CDNG: up to 4k30p, 2k120p

Please ensure that your camera's firmware is up to date for Ninja V+ to record 8k30p, 4k120p and 2k240p on our SSD.

Package content

• AtomX SSDmini

Warranty2

3-year limited warranty or TBW threshold exceeded


1 ... Speed based on internal testing. Actual transfer rates and capacity may vary depending on system hardware and other factors
2 ... To receive the full limited warranty, the product needs to be activated on the Angelbird Personal Service Portal within 30 days after purchase. If not activated within this period, the market-specific legal guarantee period comes into force.
ATOMXMINI1000PK

Specific References
